R Series Universal Flow meter

R Series Universal Flow Meters are designed for control and metering of water consumption. They are also called volumetric flow meters. Their precision is a guarantee of a constant and repetitive reading.

serie-r-universale-contalitri
Flow Rate
Certifications
Order
Presentation

Installazione

In any position

Applications

  • Washing and dishwashing machines;
  • Refrigerator;
  • Ice machines;
  • Water dispensers;
  • Industrial ovens;
  • Water and sanitary installations;
  • Public urinals;
  • Taps;
  • Hydromassage plants;
  • High and Low pressure coffee makers;

Physical specifications

Body shell acetalica
Body valve PA 66 – 30% glass fiber
Assembly With screws

Working specifications

Working pressure 0.2 – 10 bar
Room temperature Tu 60° C
Fluid temperature Tm 25 °C

Models

Models Installation Sensor Flow Rates chart Datas
0,1 – 3,6 L/min. R Single
R Double
R Triple
R Quadruple
R Mini
R componible
R Modular
HALL
REED
Flow rate graphic Nominal pulse/liter:2750
Tolerance: +/- 15%
Magnet 2
no ByPass
0,5 – 7 L/min. R Single
R Double
R Triple
R Quadruple
R Mini
R componible
R Modular
HALL
REED
Flow rate graphic Nominal pulse/liter:840
Tolerance: +/- 20%
Magnet 1
no ByPass

Flow meter Electrical Connections

Hall sensor Reed sensor
Voltage: 5-28V DC Voltage: 5-28V DC
Current: 10 mA maximum Current: 500 mA maximum
Connector: Tripolar Male back connector Connector: Tripolar Male back connector
Cable: Tripolar Female -Red connector Cable: Bipolar Female -white connector
Brown cable: positive pole Brown cable: output signal
Green cable: ngative pole White cable: output signal
White cable: output signal

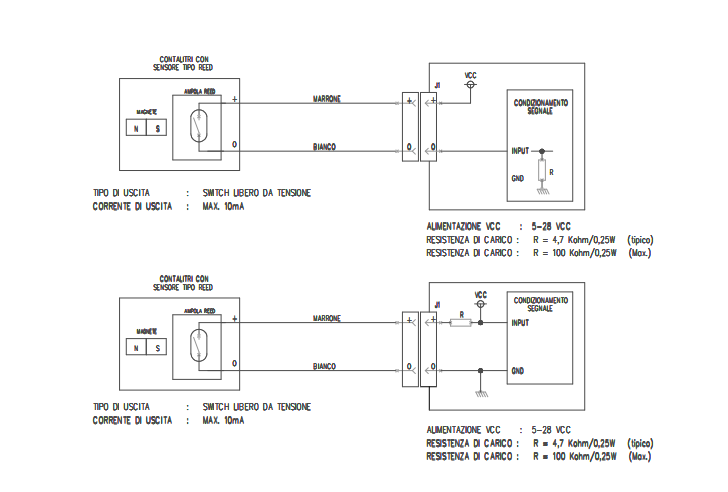

Hall scheme Reed scheme
Hall draw Reed draw

Flow Rate 0,1 – 3,6 L/min

Flow Rate 0,5 – 7 L/min

Flow Rate 1 – 15 L/min

Flow Rate 5 – 30 L/min

serie-r-universale-contalitri-4-eng

Insights

Flow Rates

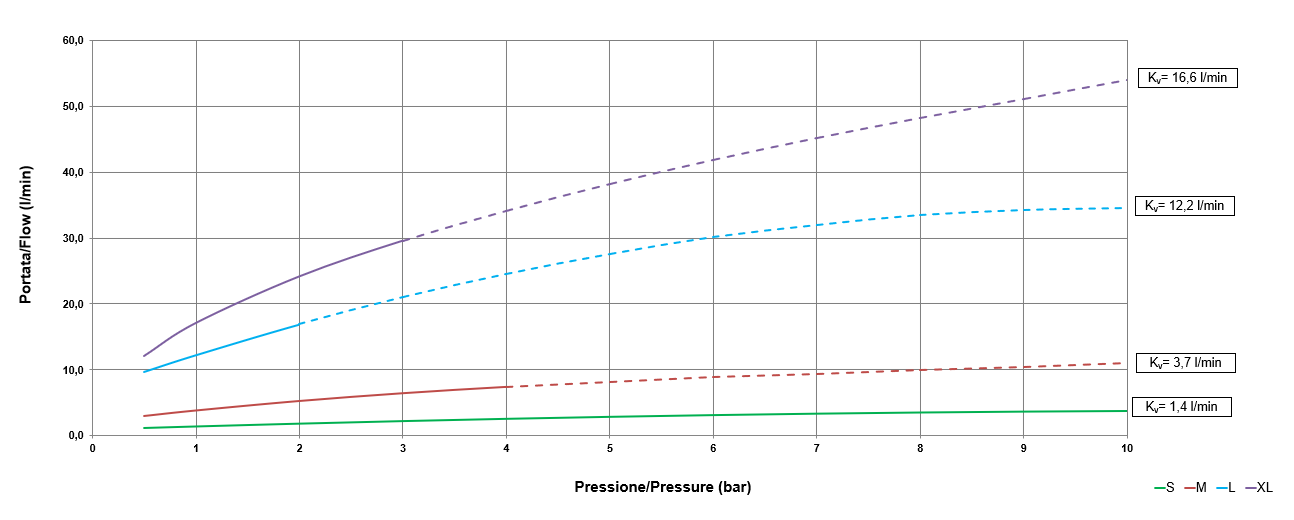

Flow Rate 0,1 – 3,6 L/min

Flow Rate Chart 0,5 – 7 L/min

contalitri-portata-serie-r-universale-rpe

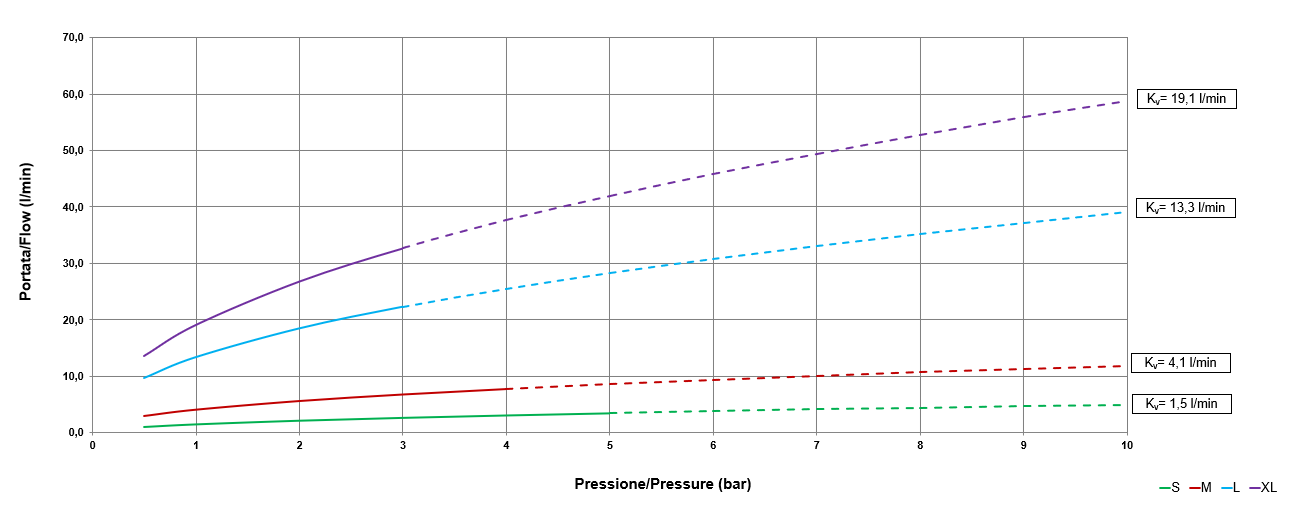

Flow Rate Chart 1 – 15 L/min

contalitri-portata-serie-r-universale-rpe

Flow Rate Chart 5 – 30 L/min
