Third Series Low Pressure

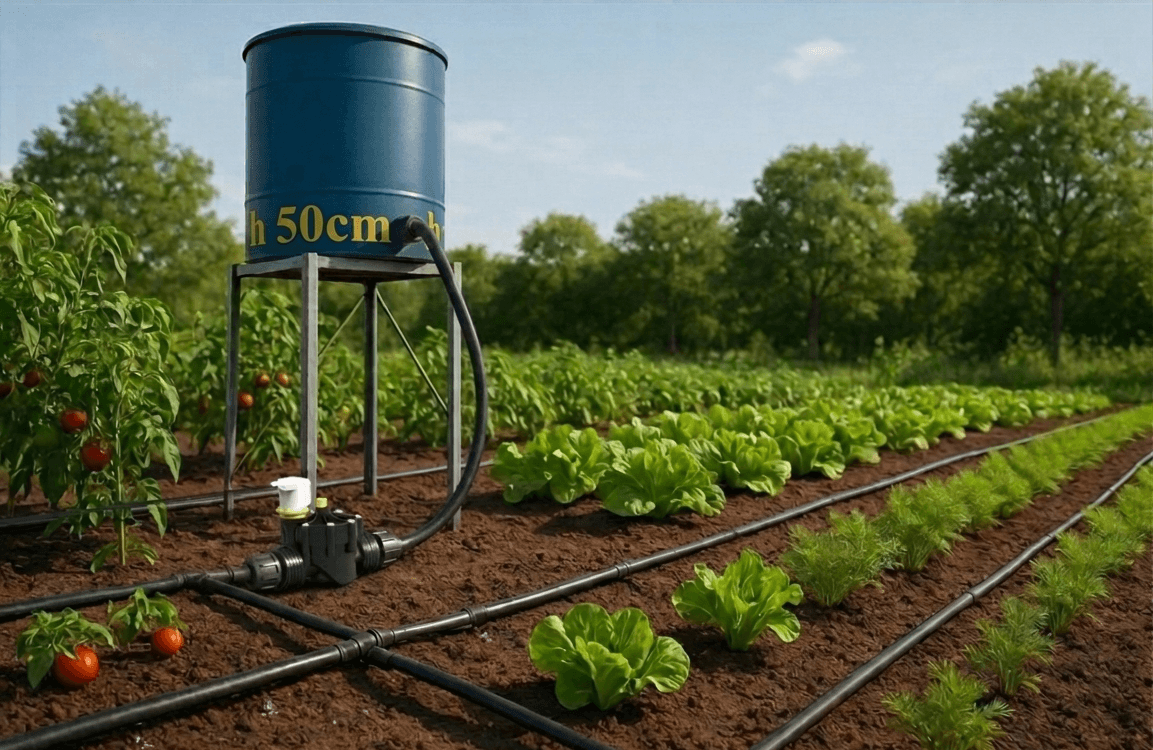

Special solenoid valve for applications where there is a very low working pressure, such as rainwater tanks or collection tanks.
The special membrane allows operation where there is no net pressure or a pump, allowing the solenoid valve to operate by simple fall.

Physical specifications

Valve body:	PA 66 – 30% FV
Diaphragm:	NBR
Core:	Stainless steel
Coil:	F class (155°)
Assembly	self-taping screw

Working Specifications

Working pressure:	0,05 – 1 bar
Room temperature:	Tu 60° C
Fluid temperature:	Tm 60° C – ED 100%
Orifice:	from 25 to 32 mm
Control:	NC, NO, Latching
Fluid direction:	Unidirectional

Electrical Connections

Faston 6,3 x 0,8 mm

Unipolar cables max 600 mm

Bipolar calbes max 5000 mm

Datasheets

Model	Connection	Nominal Diameter	Height mm	Length mm	Width mm	Box q.ty
730xxA	1″ F	25 mm	128 mm	128 mm	90 mm	24
733xxA NC	1″ F – Brass	25 mm	128 mm	128 mm	90 mm	24
830xxA	1 1/4″ F	32 mm	128 mm	128 mm	90 mm	24
833xxA NC	1 1/4″ F – Brass	32 mm	128 mm	128 mm	90 mm	24
